- Size: 2.27
- Place of Origin: China
- Brand Name:
- Model Number: VD5000II+502 HD
- Weight: 0.660 kg

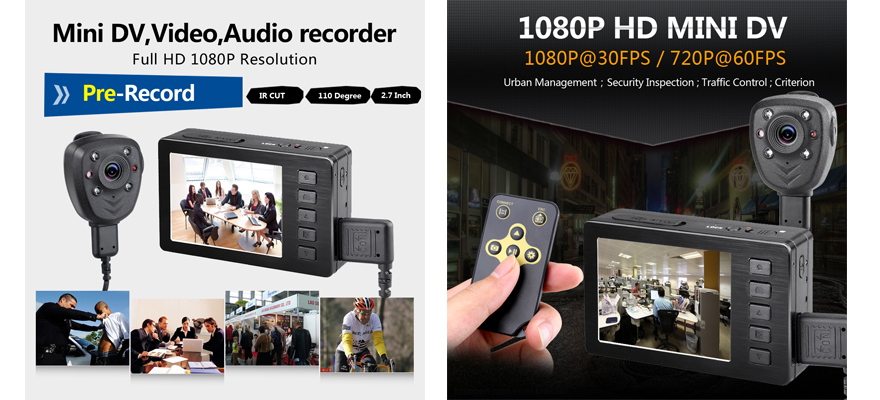

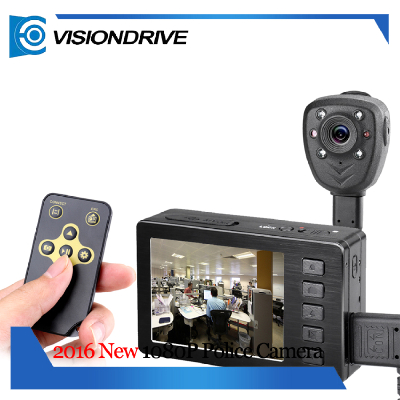

*Product body & Camera detachable，portable carry.
*960*320 HD 2.7 LCD
*Video Recording definition:1080P/30，720P/60，720P/30，480P/30
*Support low Power sleep，1 S wake video
*Support Continuous Recording，Correct Safety Protection.
*Pre record function1-5 S.
*Support record file name by Time, checking flexible.
*Digital remote control function.
*Support 16M photos memory
*Support 32GB TF
*Detachable Lithium Battery, Work time≥4Hs，Standby Time≥35Hs
*WDR Picture and Video quality
*Miniture size, 120°angel wide,IR night vision
*Easy Intallation with standard mini HDMI jack
Accessories
1 x VD5000II DVR
1 x 502HD Camera
1 x AV Cable
1 x USB Cable
1 x User Manual
1*Remote Contrl
1*2200mA Battery
- Size: 2.27
- Place of Origin: China
- Brand Name:
- Model Number: VD5000II+502 HD
- Weight: 0.660 kg
Specifications:
Item Number | 502HD |
Video Resolution | 1920*1080 |
Pixel Size | 1.4um(H)*1.4um(V) |
Digital Picture Resolution | MAX 16M |
Video System | NTSC and PAL |
CMOS Camera Module | |
Built-in image sensor | Progressive 1/4 Inch CMOS |
Illumination Sensitivity | 0.03 Lux / F2.0 (50IRE) |
Lens F/No | F2.0 |
Lens Diameter | 3.7MM |
Angle of View | 110° |
Depth of Field | 10 cm ~ ∞ |
Electronic Shutter | 1/8 ~ 1/30,000 |
Video Output | |
Video Output | AVI |
Audio | |
Audio Output | MAX 350mV 20Hz-20KHz |
IR | |
LED | 4PC |
IR Output | ≤8M （No compensation light） |
Power Supply Voltage | DC 3.3 V ± 5% |
Power Supply Current | 200 mA |
Physical | |
Operating Temperature | -10℃ ~ 60℃ |
Operating Humidity | 20 ~ 90% |
Storage Temperature | -30℃ ~ 80℃ |
Dimension | 55X48X38 mm （With clamp） |
Weight | 10 g |
Item Number | VD5000II |
Display | 2.7” 960 x 240 TFT LCD |
Video Input | NTSC/ PAL Auto-Detection NTSC/ PAL by UI setting |
Video Recording Mode | Standard/Motion Detection/Schedule/Pre-Event/ Pre-Motion/Countinue Shot/Pre-Capture/Over Write/ Time Stamp |
Resolution Mode | 640x480 to Max 1920x1080 Real Time |
Max. Resolution | Above 720P (1280x960)1080P(1920x1080) |
EMS Memory | 128MB |
Memory Type | SD Card (Supports up to 32GB SDHC) |
Frame Rate | 1, 5, 10, 15, 25, 30 fps Adjustable |
DC5V to 2.5 Ø phone jack | 300mA Max |
DC3.3V to mini-HDMI | 250mA Max |
PC Interface | USB2.0 |
Image Quality (Bit rate) | In Standard 720x576@25 FPS (PAL) High (16Mbps) / Medium (9Mbps) / Low (5Mbps) Adjustable |
Date/Time Table | YYYY/MM/DD (America) , HH,MM,SS (U.K.) |
Frame Counter Stamp | Yes |
Picture Format | Baseline JPEG |
Power Cunsumption | Video Playback:480mA Recording:600mA |
Battery Life | 200min (with BA-2200) |
Video Press Format | H.264 |
Frequency | 20HZ-20KHz |
Earphone Output | L20mW RR 20mW[ 16 Ω](Max volume) |
IBM-PC | Can be connected to support USB2.0 PC equipment |
Built-in Battery | Li-Li-ion battery 2200Mah |
Video Recording Time | ≧4H |
Standby Time | ≧35H |
Language | English / Simplified Chinese / Traditional Chinese / Korean / Japanese / Russian |
Dimension | 85X54X17mm |
Weight | 71g |
